The D2RQ Mapping Language

Version:
v0.8 – 2012-03-12
Authors:
Richard Cyganiak (DERI, NUI Galway, Ireland)
Chris Bizer (Freie Universität Berlin, Germany)
Jörg Garbers (Freie Universität Berlin, Germany)
Oliver Maresch (Technische Universität Berlin, Germany)
Christian Becker (Freie Universität Berlin, Germany)
Abstract:
This document describes the D2RQ Mapping Language, a declarative language for mapping relational database schemas to RDF vocabularies and OWL ontologies. The language is implemented in the D2RQ Platform.

1. Introduction

The D2RQ Mapping Language is a declarative language for describing the relation between a relational database schema and RDFS vocabularies or OWL ontologies.

A D2RQ mapping is itself an RDF document written in Turtle syntax. The mapping is expressed using terms in the D2RQ namespace:

http://www.wiwiss.fu-berlin.de/suhl/bizer/D2RQ/0.1#

The terms in this namespace are formally defined in the D2RQ RDF schema (Turtle version, RDF/XML version).

The mapping defines a virtual RDF graph that contains information from the database. This is similar to the concept of views in SQL, except that the virtual data structure is an RDF graph instead of a virtual relational table. The virtual RDF graph can be accessed in various ways, depending on what's offered by the implementation. The D2RQ Platform provides SPARQL access, a Linked Data server, an RDF dump generator, a simple HTML interface, and Jena API access to D2RQ-mapped databases.

D2RQ mappings can be written by hand in a text editor, but usually it is much faster to start with the generate-mapping tool that generates a skeleton “default mapping” from the database schema.

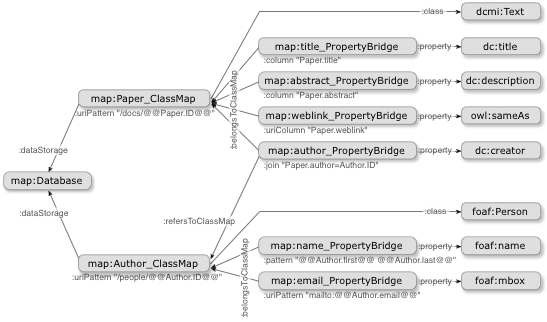

The figure below shows the structure of an example D2RQ map:

Diagram: Structure of a typical D2RQ map

The database is mapped to RDF terms, shown on the right, using d2rq:ClassMaps and d2rq:PropertyBridges. The most important objects within the mapping are the class maps. A class map represents a class or a group of similar classes of the ontology. A class map specifies how URIs (or blank nodes) are generated for the instances of the class. It has a set of property bridges, which specify how the properties of an instance are created.

2. Example D2RQ mappings

ISWC example: We are using an example database which stores information about conferences, papers, authors and topics throughout this manual. The database is mapped to the International Semantic Web Community (ISWC) Ontology.

Wordpress example: Another example maps the Wordpress database schema to RDF.

Template: The following example D2RQ map relates the table conferences in a database to the class conference in an ontology. You can use the map as a template for writing your own maps.

# D2RQ Namespace
@prefix d2rq:        <http://www.wiwiss.fu-berlin.de/suhl/bizer/D2RQ/0.1#> .
# Namespace of the ontology
@prefix : <http://annotation.semanticweb.org/iswc/iswc.daml#> .

# Namespace of the mapping file; does not appear in mapped data
@prefix map: <file:///Users/d2r/example.ttl#> .

# Other namespaces
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#> .
@prefix xsd: <http://www.w3.org/2001/XMLSchema#> .

map:Database1 a d2rq:Database;
    d2rq:jdbcDSN "jdbc:mysql://localhost/iswc";
    d2rq:jdbcDriver "com.mysql.jdbc.Driver";
    d2rq:username "user";
    d2rq:password "password";
    .
# -----------------------------------------------
# CREATE TABLE Conferences (ConfID int, Name text, Location text);

map:Conference a d2rq:ClassMap;
    d2rq:dataStorage map:Database1;
    d2rq:class :Conference;
    d2rq:uriPattern "http://conferences.org/comp/confno@@Conferences.ConfID@@";
    .
map:eventTitle a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Conference;
    d2rq:property :eventTitle;
    d2rq:column "Conferences.Name";
    d2rq:datatype xsd:string;
    .
map:location a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Conference;
    d2rq:property :location;
    d2rq:column "Conferences.Location";
    d2rq:datatype xsd:string;
    .

The individual constructs of the D2RQ mapping language are described in detail below.

3. Database connection (d2rq:Database)

A d2rq:Database defines a JDBC connection to a local or remote relational database. A D2RQ map can contain several d2rq:Databases for accessing different databases.

3.1 Properties of d2rq:Database

d2rq:jdbcDSN The JDBC database URL. This is a string of the form jdbc:subprotocol:subname. For a MySQL database, this is something like jdbc:mysql://hostname:port/dbname. Examples for other databases
d2rq:jdbcDriver The JDBC driver class name for the database. Used together with d2rq:jdbcDSN. Example: com.mysql.jdbc.Driver for MySQL.
d2rq:username A username if required by the database.
d2rq:password A password if required by the database.
d2rq:resultSizeLimit An integer value that will be added as a LIMIT clause to all generated SQL queries. This sets an upper bound for the number of results returned from large databases. Note that this effectively “cripples” the server and can cause unpredictable results. Also see d2rq:limit and d2rq:limitInverse, which may be used to impose result limits on individual property bridges.
d2rq:fetchSize An integer value that specifies the number of rows to retrieve with every database request. This value is particularily important to control memory resources of both the D2RQ and the database server when performing dumps. dump-rdf sets this value to 500 by default, or to Integer.MIN_VALUE for MySQL in order to enable streaming mode.
d2rq:startupSQLScript URL of a SQL script to be executed on startup. Useful for initializing the connection and testing. To load from the file system relative to the mapping file's location, use this syntax: d2rq:startupSQLScript <file:script.sql>;
d2rq:textColumn
d2rq:numericColumn
d2rq:dateColumn
d2rq:timestampColumn
d2rq:timeColumn
d2rq:binaryColumn
d2rq:booleanColumn
d2rq:bitColumn
d2rq:intervalColumn
These properties are used to declare the column type of database columns. This affects the kind of SQL literal that D2RQ will use to query for values in this column. The objects of the properties are column names in Table_name.column_name notation. These properties do not need to be specified unless the engine is for some reason unable to determine the correct column type by itself. The d2rq:timestampColumn is for column types that combine a date and a time. The d2rq:binaryColumn is for column types that contain binary data, such as BLOBs.

3.2 Example: Connecting to a MySQL database

map:Database1 a d2rq:Database;
    d2rq:jdbcDSN "jdbc:mysql://localhost/iswc";
    d2rq:jdbcDriver "com.mysql.jdbc.Driver";
    d2rq:username "user";
    d2rq:password "password";
    .

3.3 Specifying JDBC connection properties

Most JDBC drivers offer a range of JDBC connection properties, which specify advanced configuration options for the JDBC database connection. A D2RQ mapping file can be made to use arbitrary connection properties when setting up the JDBC connection. This is done through the jdbc: namespace (namespace URI: http://d2rq.org/terms/jdbc/). RDF properties in that namespace will be passed as connection properties. Consult your JDBC driver's documentation for a list of available properties.

@prefix jdbc: <http://d2rq.org/terms/jdbc/> .

map:database a d2rq:Database;
    # ... other database configuration ...
    jdbc:autoReconnect "true";
    jdbc:zeroDateTimeBehavior "convertToNull";
    .

The example uses two connection properties which are understood by the MySQL JDBC driver: autoReconnect=true and zeroDateTimeBehavior=convertToNull.

3.4 Keep-alive long-term connections

Some database servers like MySQL may terminate open client connections after some interval (MySQL default is 8 hours). To keep alive long-term connections, D2R can be configured to periodically run "noop" queries. This feature can be enabled with the special property jdbc:keepAlive. An example is given below:

@prefix jdbc: <http://d2rq.org/terms/jdbc/> .

map:database a d2rq:Database;
    # ... other database configuration ...
    jdbc:keepAlive "3600"; # value in seconds
    jdbc:keepAliveQuery "SELECT 1"; # (optionally to override default noop query)
    .

By default the noop query is “SELECT 1”, which may not work with some DBMS. For this purpose, the default query may be overridden with a custom noop query.

4. Global configuration of the mapping engine (d2rq:Configuration)

A d2rq:Configuration controls global behaviour of D2RQ. It is generally not required if the defaults are satisfactory.

4.1 Properties of d2rq:Configuration

d2rq:serveVocabulary Whether to serve inferred and user-supplied vocabulary data (boolean; true by default). This option is automatically set when using D2R Server's --fast command-line option.
d2rq:useAllOptimizations Whether to use bleeding edge optimizations (boolean; false by default).

4.2 Example: Activating optimizations

In order to activate bleeding edge optimizations, a d2rq:Configuration block with the property d2rq:useAllOptimizations set to true is created:

map:Configuration a d2rq:Configuration;
    d2rq:useAllOptimizations true.

5. Creating RDF resources (d2rq:ClassMap)

A d2rq:ClassMap represents a class or a group of similar classes of an OWL ontology or RDFS schema. A class map defines how instances of the class are identified. It is connected to a d2rq:Database and has a set of d2rq:PropertyBridges which attach properties to the instances.

5.1 Resource Identity

D2RQ provides four different mechanisms of assigning identifiers to the instances in the database:

URI patterns

A URI pattern is instantiated by inserting values of certain database columns into a pattern. Examples:

http://example.org/persons/@@Persons.ID@@
http://example.org/lineItems/item@@Orders.orderID@@-@@LineItems.itemID@@
urn:isbn:@@Books.isbn@@
mailto:@@Persons.email@@

The parts between @@'s mark database columns in Table.Column notation. URI patterns are used with the d2rq:uriPattern property.

Certain characters, like spaces or the hash sign, are not allowed in URIs or have special meaning. Columns that contain such characters need to be encoded before their values can be inserted into a URI pattern:

Warning: If the URIs produced by a URI pattern with encoding are also produced elsewhere in the D2RQ mapping without the use of the same encoding (e.g., from a d2rq:uriColumn or d2rq:constantValue), then SPARQL queries that “join” over those URIs may not work as expected.

Relative URI patterns

A relative URI pattern is a URI pattern that generates relative URIs:

persons/@@Persons.ID@@

They will be combined with a base URI provided by the processing environment to form full URIs. Relative URI patterns allow the creation of portable mappings that can be used for multiple instances of the same database schema. Relative URI patterns are generated with the d2rq:uriPattern property.

URI columns

In some cases, the database may already contain URIs that can be used as resource identifiers, such as web page and document URLs. URI are generated from columns with the d2rq:uriColumn property.

URI expressions

URIs can be generated with a SQL expression, specified via d2rq:uriSqlExpression. The expression must yield a valid URI.

Blank nodes

RDF also has the concept of blank nodes, existential qualifiers that denote some resource that exists and has certain properties, but is not named. In D2RQ, blank nodes can be generated from one or more columns. A distinct blank node will be generated for each distinct set of values of these columns. The columns are specified using the with the d2rq:bNodeIdColumns property.

Note that blank nodes cannot be referenced from outside the RDF graph they exist in. This limits their usefulness, and they are best avoided.

Singleton class maps

A d2rq:ClassMap usually produces many resources. Sometimes it is desirable to have a class map that only produces a single resource with fixed, static identity. In that case, one can use the d2rq:constantValue property to provide the URI for the single instance.

5.2 Properties of d2rq:ClassMap

d2rq:dataStorage Reference to a d2rq:Database where the instance data is stored.
d2rq:class An RDF-S or OWL class. All resources generated by this ClassMap are instances of this class.
d2rq:uriPattern Specifies a URI pattern that will be used to identify instances of this class map.
d2rq:uriColumn A database column containing URIrefs for identifying instances of this class map. The column name has to be in the form "TableName.ColumnName".
d2rq:uriSqlExpression A SQL expression that generates the URI identifiers for instances of this class map. Similar to d2rq:sqlExpression. The output must be a valid URI. Note that querying for such a computed value might put a heavy load on the database. See example below.
d2rq:bNodeIdColumns A comma-seperated list of column names in "TableName.ColumnName" notation. The instances of this class map will be blank nodes, one distinct blank node per distinct tuple of these columns.
d2rq:constantValue This class map will only have a single instance, which is named by the value of this property. This can be a blank node or a URI.
d2rq:containsDuplicates Must be specified if a class map uses information from tables that are not fully normalized. If the d2rq:containsDuplicates property value is set to "true", then D2RQ adds a DISTINCT clause to all queries using this classMap. "False" is the default value, which doesn't have to be explicitly declared. Adding this property to class maps based on normalized database tables degrades query performance, but doesn't affect query results.
d2rq:additionalProperty Adds an AdditionalProperty to all instances of this class. This might be useful for adding rdfs:seeAlso properties or other fixed statements to all instances of the class.
d2rq:condition Specifies an SQL WHERE condition. An instance of this class will only be generated for database rows that satisfy the condition. Conditions can be used to hide parts of the database from D2RQ, e.g. deny access to data which is older or newer than a certain date. See section Conditional Mappings for details.
d2rq:classDefinitionLabel Specifies a label that will be served as rdfs:label for all associated class definitions. Multiple lables, e.g. in several languages, are supported.
d2rq:classDefinitionComment Specifies a comment that will be served as rdfs:comment for all associated class definitions. Multiple comments are supported.
d2rq:additionalClassDefinitionProperty Adds an AdditionalProperty to all associated class definitions.

Furthermore, d2rq:valueMaxLength, d2rq:valueRegex, d2rq:valueContains, and d2rq:translateWith can be used and work the same way as on property bridges.

d2rq:join and d2rq:alias can be used too, and are inherited by the map's property bridges.

5.3 Example: Identifying class map instances with a URI pattern

map:PaperClassMap a d2rq:ClassMap;
    d2rq:uriPattern "http://www.conference.org/conf02004/paper#Paper@@Papers.PaperID@@";
    d2rq:class :Paper;
    d2rq:classDefinitionLabel "paper"@en;
    d2rq:classDefinitionComment "A conference paper."@en;
    d2rq:dataStorage map:Database1;
    .

The d2rq:class property is used to state that all resources generated by the d2rq:ClassMap are instances of an RDFS or OWL class. D2RQ automatically creates the necessary rdf:type triples.

5.4 Example: Class map instances with blank nodes

map:Topic a d2rq:ClassMap;
    d2rq:bNodeIdColumns "Topics.TopicID";
    d2rq:class :Topic;
    d2rq:classDefinitionLabel "topic"@en;
    d2rq:classDefinitionComment "A topic."@en;
    d2rq:dataStorage map:Database1;
    .

5.5 Example: A group of classes all mapped from the same table

If you want to use one ClassMap for a group of classes with the same properties (like Person, Professor, Researcher, Student) that all come from the same table, you must create the rdf:type statements with an object property bridge instead of using d2rq:class.

map:PersonsClassMap a d2rq:ClassMap;
    d2rq:uriColumn "Persons.URI";
    d2rq:dataStorage map:Database1;
    .
map:PersonsType a d2rq:PropertyBridge;
    d2rq:property rdf:type;
    d2rq:pattern "http://annotation.semanticweb.org/iswc/iswc.daml#@@Persons.Type@@";
    d2rq:belongsToClassMap map:PersonsClassMap
    .

Here, the class of each person is obtained by prefixing the values of the Persons.Type column with an ontology namespace. If the class names within the ontology can't be constructed directly from values of the Persons.Type column, then a TranslationTable could be used for aligning class names and database values.

6. Adding properties to resources (d2rq:PropertyBridge)

A d2rq:PropertyBridge relates a database column to an RDF property. Property bridges are used to attach properties to the RDF resources created by a class map. The values of these properties are often literals, but can also be URIs or blank nodes that relate the resource to other resources, e.g. the value of a paper's :author property could be a URI representing a person.

If the one of the columns used in a property bridge is NULL for some database rows, then no property is created for the resources corresponding to these rows.

6.1 Properties of d2rq:PropertyBridge

d2rq:belongsToClassMap Specifies that the property bridge belongs to a d2rq:ClassMap. Must be specified for every property bridge.
d2rq:property The RDF property that connects the ClassMap with the object or literal created by the bridge. Must be specified for every property bridge. If multiple d2rq:properties are specified, then one triple with each property is generated per resource.
d2rq:dynamicProperty A URI pattern that is used to generate the property URI at runtime. If multiple d2rq:dynamicProperty are specified, then one triple with each property is generated per resource.
d2rq:column For properties with literal values. The database column that contains the literal values. Column names have to be given in the form "TableName.ColumnName".
d2rq:pattern For properties with literal values. Can be used to extend and combine column values before they are used as a literal property value. If a pattern contains more than one column, then a separating string, which cannot occur in the column values, has to be used between the column names, in order to allow D2RQ reversing given literals into column values.
d2rq:sqlExpression For properties with literal values. Generates literal values by evaluating a SQL expression. Note that querying for such a computed value might put a heavy load on the database. See example below.
d2rq:datatype For properties with literal values. Specifies the RDF datatype of the literals.
d2rq:lang For properties with literal values. Specifies the language tag of the literals.
d2rq:constantValue For properties that have the same constant value on all instances of the class map. The value can be a literal, blank node, or URI. See example below.
d2rq:refersToClassMap For properties that correspond to a foreign key. References another d2rq:ClassMap that creates the instances which are used as the values of this bridge. If these instances come from another table, then one or more d2rq:join properties must be specified to select the correct instances. See example below.
d2rq:uriColumn
d2rq:uriPattern
d2rq:uriSqlExpression
For properties where the value is supposed to be a URI instead of a literal. They work the same as on class maps.
d2rq:join If the columns used to create the literal value or object are not from the database table(s) that contains the ClassMap's columns, then the tables have to be joined together using one or more d2rq:join properties. See examples below.
d2rq:alias Aliases take the form "Table AS Alias" and are used when a table needs to be joined to itself. The table can be referred to using the alias within the property bridge. See example below.
d2rq:condition Specifies an SQL WHERE condition. The bridge will only generate a statement if the condition holds. A common usage is to suppress triples with empty literal values: d2rq:condition "Table.Column <> ''". See section Conditional Mappings for details.
d2rq:translateWith Assigns a d2rq:TranslationTable to the property bridge. Values from the d2rq:column or d2rq:pattern will be translated by the table. See section TranslationTables for details.
d2rq:valueMaxLength Asserts that all values of this bridge are not longer than a number of characters. This allows D2RQ to speed up queries. See section Performance Optimization for details.
d2rq:valueContains Asserts that all values of this bridge always contain a given string. This allows D2RQ to speed up queries. Most useful in conjunction with d2rq:column. See section Performance Optimization for details.
d2rq:valueRegex Asserts that all values of this bridge match a given regular expression. This allows D2RQ to speed up queries. Most useful in conjunction with d2rq:column on columns whose values are very different from other columns in the database. See section Performance Optimization for details.
d2rq:propertyDefinitionLabel Specifies a label that will be served as rdfs:label for all associated property definitions. Multiple lables, e.g. in several languages, are supported.
d2rq:propertyDefinitionComment Specifies a comment that will be served as rdfs:comment for all associated property definitions. Multiple comments are supported.
d2rq:additionalPropertyDefinitionProperty Adds an AdditionalProperty to all associated property definitions.
d2rq:limit The maximum number of results to retrieve from the database for this PropertyBridge. Also see d2rq:resultSizeLimit.
d2rq:limitInverse The maximum number of results to retrieve from the database for the inverse statements for this PropertyBridge.
d2rq:orderAsc The column after which to sort results in ascending order for this PropertyBridge. Useful when results are limited using d2rq:limit.
d2rq:orderDesc The column after which to sort results in descending order for this PropertyBridge. Useful when results are limited using d2rq:limit.

6.2 Example: A simple property bridge

map:PaperTitle a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Paper;
    d2rq:property :title;
    d2rq:column "Papers.Title";
    d2rq:lang "en";
    d2rq:propertyDefinitionLabel "title"@en;
    d2rq:propertyDefinitionComment "A paper's title."@en;
    .

This attaches a :title property to all resources generated by the map:Paper class map. The property values are taken from the Papers.Title column. The generated literals will have a language tag of "en".

6.3 Example: Property bridge using information from another table

map:authorName a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Papers;
    d2rq:property :authorName;
    d2rq:column "Persons.Name";
    d2rq:join "Papers.PaperID <= Rel_Person_Paper.PaperID";
    d2rq:join "Rel_Person_Paper.PersonID => Persons.PerID";
    d2rq:datatype xsd:string;
    d2rq:propertyDefinitionLabel "name"@en;
    d2rq:propertyDefinitionComment "Name of an author."@en;
    .

This property bridge adds the names of authors to papers. If a paper has several authors, then several :authorName properties are added. The tables Papers and Persons are in an n:m relation. The d2rq:join is used to join the tables over the Rel_Person_Paper. The join condition contains directed arrows that indicate the foreign key relationship and are used as an optimization hint. In the example above, the arrow directions indicate that all possible values of Rel_Person_Paper.PaperID and Rel_Person_Paper.PersonID are present in Papers.PaperID and Persons.PerID, respectively. Where this is unclear, a simple equation sign (=) may be used.

6.4 Example: A property bridge with mailto: URIs

map:PersonsClassEmail a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:PersonsClassMap;
    d2rq:property :email;
    d2rq:uriPattern "mailto:@@Persons.Email@@";
    .

The pattern mailto:@@Persons.Email@@ is used to attach a mailto: prefix to the values of the "Persons.Email" column. The example uses d2rq:uriPattern instead of d2rq:pattern because the bridge should produce URIs, not literals.

6.5 Example: A property bridge that computes mailbox hashes

The popular FOAF vocabulary has a property foaf:mbox_sha1sum for publishing email addresses in an encoded form. This prevents spammers from harvesting the address, while still letting us recognize if the same email address is used in two different places.

map:UserEmailSHA1 a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:User;
    d2rq:property foaf:mbox_sha1sum;
    d2rq:sqlExpression "SHA1(CONCAT('mailto:', user.email))";
    .

The values of the foaf:mbox_sha1sum are computed by evaluating the d2rq:sqlExpression. We first create a mailto: URI from the email address, as required by FOAF. Then we apply the SHA1 hash function, again as required by FOAF. The result will be a literal value.

Note that querying for a specific foaf:mbox_sha1sum value will put a heavy load on the database because the hash has to be computed for every user in the database. For a large database, it would be better to store the encoded values in a column in the database.

6.6 Example: A property bridge with URIs generated by an SQL expression

map:HomepageURL a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:PersonsClassMap;
    d2rq:property foaf:homepage;
    d2rq:uriSqlExpression "CONCAT('http://www.company.com/homepages/', user.username)";
    .

The pattern mailto:@@Persons.Email@@ is used to attach a mailto: prefix to the values of the "Persons.Email" column. The example uses d2rq:uriPattern instead of d2rq:pattern because the bridge should produce URIs, not literals.

6.7 Example: Linking instances from two database tables

map:PaperConference a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Paper;
    d2rq:property :conference;
    d2rq:refersToClassMap map:Conference;
    d2rq:join "Papers.Conference => Conferences.ConfID";
    .

The example attaches a :conference property to papers. The values of the property are generated by the map:Conference class map, not shown here. It may use a d2rq:uriPattern, d2rq:uriColumn or blank nodes to identify the conferences. The appropriate instance is found using the d2rq:join on the foreign key Papers.Conference.

6.8 Example: Foreign key with multiple columns

Foreign keys can span multiple columns. To create a property that links instances along such a foreign key, use multiple d2rq:join properties on the property bridge, one for each pair of columns in the key:

map:PaperConference a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Paper;
    d2rq:property :journalIssue;
    d2rq:refersToClassMap map:JournalIssue;
    d2rq:join "Papers.Journal => Journal.JournalID";
    d2rq:join "Papers.Issue => Journal.IssueID";
    .

In the example, the Journal table has a composite key consisting of JournalID and IssueID. The foreign key constraint that assigns papers to journals covers two columns, and hence two d2rq:joins are needed.

6.9 Example: Joining a table to itself using d2rq:alias

map:ParentTopic a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Topic;
    d2rq:property :parentTopic;
    d2rq:refersToClassMap map:Topic;
    d2rq:join "Topics.ParentID => ParentTopics.ID";
    d2rq:alias "Topics AS ParentTopics";
    .

Here, a topic may have a parent topic whose ID is found in the Topics.ParentID column. This foreign key refers back to the Topics.ID column. The table has to be joined to itself. A d2rq:alias is declared, and the join is established between the original table and the aliased table. This pattern is typical for hierarchical or graph-style relationships.

6.10 Example: Adding a constant property-value pair to each instance of a class map

Sometimes it is desirable to add a property with a constant value to every resource that is created by a class map. To achieve this, use a d2rq:PropertyBridge that uses d2rq:constantValue:

map:PersonsClassMap a d2rq:ClassMap;
    d2rq:class :Person;
    .
map:seeAlsoBridge a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:PersonsClassMap;
    d2rq:property rdfs:seeAlso;
    d2rq:constantValue <http://annotation.semanticweb.org/iswc2003/>;
    .

This adds an rdfs:seeAlso statement with a fixed URL object to every instance of the map:PersonsClassMap class map.

7. Translating values (d2rq:TranslationTable)

A d2rq:TranslationTable is an additional layer between the database and the RDF world. It translates back and forth between values taken from the database and RDF URIs or literals. A translation table can be attached to a class map or a property bridge using the d2rq:translateWith property. Translation tables can be used only for mappings that are unique in both directions (1:1).

Warning: If URIs produced using a translation table are also produced elsewhere in the D2RQ mapping without the same translation table (e.g., from a d2rq:uriColumn or d2rq:constantValue), then SPARQL queries that “join” over those URIs may not work as expected.

7.1 Properties of d2rq:TranslationTable

d2rq:translation Adds a d2rq:Translation to the table.
d2rq:href Links to a CSV file containing translations. Each line of the file is a translation and contains two strings separated by a comma. The first one is the DB value, the second the RDF value.
d2rq:javaClass The qualified name of a Java class that performs the mapping. The class must implement the Translator interface. Custom Translators might be useful for encoding and decoding values, but are limited to 1:1 translations. Further datails can be found in the D2RQ javadocs.

7.2 Translation

A d2rq:Translation is a single entry in a d2rq:TranslationTable.

d2rq:databaseValue A value that might appear in a database column or might be generated by a d2rq:pattern.
d2rq:rdfValue A translation of that value to be used in RDF constructs.

7.3 Example: Translating color codes

A typical application are database columns containing type codes or similar enumerated values. A translation table can be used to turn them into RDF resources. In this example, the column ShinyObject.Color contains a color code: "R" for red, "G" for green etc. These codes must be translated into RDF resources: :red, :green etc.

:red a :Color;
:green a :Color;
# ... more colors omitted ...
:blue a :Color;

map:ColorBridge a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:ShinyObjectMap;
    d2rq:property :color;
    d2rq:uriColumn "ShinyObject.Color";
    d2rq:translateWith map:ColorTable;
    .
map:ColorTable a d2rq:TranslationTable;
    d2rq:translation [ d2rq:databaseValue "R"; d2rq:rdfValue :red; ];
    d2rq:translation [ d2rq:databaseValue "G"; d2rq:rdfValue :green; ];
    # ... more translations omitted ...
    d2rq:translation [ d2rq:databaseValue "B"; d2rq:rdfValue :blue; ];
    .

The d2rq:translateWith statement tells D2RQ to look up database values in the map:ColorTable. There, a translation must be given for each possible value. If the database contains values which are not in the translation table, D2RQ will not generate a :color statement for that :ShinyObject instance.

Note that the type of the resulting RDF node is determined by the bridge and not by the node type of the rdfValues. map:ColorBridge uses d2rq:uriColumn. Thus, the translation will create URI nodes. If it used d2rq:column, then literals would be created.

8. Enabling HTTP access to CLOBs/BLOBs (d2rq:DownloadMap)

Some databases contain entire files, such as PDFs or PNGs, in database columns (often of types like BLOB). D2R Server can make the contents of such columns downloadable using a d2rq:DownloadMap.

A d2rq:DownloadMap specifies the name of the column that contains the downloadable content, and a URI pattern in the server's URI space from where the content is to be made downloadable. An instance of d2rq:DownloadMap can have the following properties:

8.1 Properties of d2rq:DownloadMap

d2rq:dataStorage A d2rq:Database instance
d2rq:contentDownloadColumn The column containing downloadable resources, in [SCHEMA.]TABLE.COLUMN notation
d2rq:uriPattern
d2rq:uriColumn
d2rq:uriSqlExpression
d2rq:constantValue
Specifies the URIs where the server will make downloadable URIs available. Details are the same as for d2rq:ClassMap and d2rq:PropertyBridge. Only one may be used.
d2rq:mediaType The Internet media type of the files served from this download map. This will be sent in the HTTP Content-Type header. Examples include application/pdf, image/png, text/plain and text/html. If absent, application/octet-stream will be sent to indicate a generic binary file. The value can be obtained from the database using the d2rq:pattern syntax (see example).
d2rq:condition
d2rq:join
d2rq:alias
Same meaning as on d2rq:ClassMap and d2rq:PropertyBridge
d2rq:belongsToClassMap Can be used instead of d2rq:dataStorage to point to an existing d2rq:ClassMap instance. The class map's data storage will be used, and any conditions, joins and aliases of the class map will be inherited by the download map. This facilitates the use of a single resource as both download map and property bridge, see example.

8.2 Example: Making PDFs downloadable

In the following example, the PAPER.PDF column is assumed to contain PDF files.

map:PaperDownload a d2rq:DownloadMap;
    d2rq:dataStorage map:database;
    d2rq:uriPattern "downloads/@@PAPER.ID@@.pdf";
    d2rq:contentDownloadColumn "PAPER.PDF";
    d2rq:mediaType "application/pdf";
    .

This download maps makes the PDFs downloadable at URIs such as http://serverbase/papers/123/download, and serves them with the correct media type application/pdf.

8.3 Example: Download map combined with a property bridge

Sometimes the URI where content can be downloaded should also be the value of a property of some resource. To make such mappings easy, a single resource can be declared as both a d2rq:DownloadMap and d2rq:PropertyBridge. The download map will inherit the class map's data storage, as well as any conditions, aliases and joins.

map:PaperDownload a d2rq:DownloadMap, d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Paper;
    d2rq:uriPattern "downloads/@@PAPER.ID@@.pdf";
    d2rq:contentDownloadColumn "PAPER.PDF";
    d2rq:mediaType "application/pdf";
    d2rq:property ex:download;
    d2rq:condition "PAPER.PDF IS NOT NULL";
    .

This makes the contents of the PAPER.PDF column downloadable at URIs like http://serverbase/papers/123/download, and at the same time adds these URIs as values of the ex:download properties to the instances generated by the map:Paper class map.

Also note the d2rq:condition, which suppresses creation of the ex:download triple if the value of PAPER.PDF is NULL.

8.4 Example: Downloads in multiple formats

Sometimes, the files in a download column are not in a single format, but in multiple formats, with the format indicated in an additional column. This can be handled by defining multiple download maps with appropriate d2rq:conditions.

map:PaperDownloadPDF a d2rq:DownloadMap;
    d2rq:dataStorage map:database;
    d2rq:uriPattern "downloads/@@PAPER.ID@@.pdf";
    d2rq:contentDownloadColumn "PAPER.DOWNLOAD";
    d2rq:mediaType "application/pdf";
    d2rq:condition "PAPER.FORMAT = 'PDF'";
    .
map:PaperDownloadWord a d2rq:DownloadMap;
    d2rq:dataStorage map:database;
    d2rq:uriPattern "downloads/@@PAPER.ID@@.doc";
    d2rq:contentDownloadColumn "PAPER.DOWNLOAD";
    d2rq:mediaType "application/msword";
    d2rq:condition "PAPER.FORMAT = 'DOC'";
    .

8.5 Example: Media type from a database column

The d2rq:mediaType of a download map can be a pattern that is instantiated with column values:

map:PaperDownloadPDF a d2rq:DownloadMap;
    d2rq:dataStorage map:database;
    d2rq:uriPattern "downloads/@@PAPER.ID@@";
    d2rq:contentDownloadColumn "PAPER.DOWNLOAD";
    d2rq:mediaType "@@PAPER.MIMETYPE@@";
    .

9. Serving Vocabulary Classes and Properties

In the spirit of Linked Data, the URIs of classes and properties should be dereferenceable.

In a mapping file auto-generated by the generate-mapping utility, the classes and properties have QNames such as vocab:TableName and vocab:TableName_ColumnName. The vocab: prefix expands to a URI relative to the base URI of the server, yielding URIs such as http://baseURI/vocab/TableName. These URIs can be dereferenced in D2R Server.

By default, the only statement about these URIs is an rdf:type statement that declares the URI as an rdfs:Class or rdf:Property. However, further statements can be added in the mapping file. This is done by adding additional properties, described in this section, to the class map or property map. The following mapping illustrates the intended usage:

@prefix vocabClass: <http://localhost:2020/vocab/resource/class/> .
@prefix vocabProperty: <http://localhost:2020/vocab/resource/property/> .

map:offer a d2rq:ClassMap;
    d2rq:classDefinitionLabel "Offer"@en;
    d2rq:classDefinitionComment "This is an offer"@en;
    d2rq:class vocabClass:Offer;
    .

When dereferenced, http://localhost:2020/vocab/resource/class/Offer will return the specified label and comment as well as the automatically inferred type rdfs:Class. Note that the prefixes are bound to absolute URIs because relative URIs would be based under http://localhost:2020/resource/.

This feature only works for simple (URI, ANY, ANY) or (ANY, ANY, URI) find patterns that touch on vocabulary resources. In other words, it only works when dereferencing the class or property URI, or when describing the URI using a a SPARQL DESCRIBE query. It currently does not work within other SPARQL queries such as SELECT or CONSTRUCT.

9.1 Labels and Comments for Vocabulary Terms

An rdfs:label can be added to a term URI by ading d2rq:classDefinitionLabel or d2rq:propertyDefinitionLabel to the class map or property map.

An rdfs:comment can be added by adding d2rq:classDefinitionComment and d2rq:propertyDefinitionComment to the class map or property map.

Other properties can be added by creating a d2rq:AdditionalProperty construct, described below, and by linking to it from the class map or property map using d2rq:additionalClassDefinitionProperty and d2rq:additionalPropertyDefinitionProperty.

9.2 AdditionalProperty

A d2rq:AdditionalProperty construct can be used to add a fixed statement to all class definitions of a class map, or to all property definitions of a property bridge. The statement is added to the result sets, if patterns like (ANY, ANY, ANY), (URI, ANY, ANY) or (URI, additionalPropertyName, ANY) are used. The usage of d2rq:AdditionalProperty to add instance data is now deprecated (details). The d2rq:additionalClassDefinitionProperty and d2rq:additionalPropertyDefinitionProperty properties are used to link from the class map or property bridge to the d2rq:AdditionalProperty definition.

d2rq:propertyName The RDF property to be used as the predicate of all fixed statements.
d2rq:propertyValue The value to be used as the object of all fixed statements.

9.3 Example: Providing an additional property for a class definition

map:PersonsClassMap a d2rq:ClassMap;
    d2rq:class :Person;
    d2rq:additionalClassDefinitionProperty map:PersonEquivalence;
    .
map:PersonEquivalence a d2rq:AdditionalProperty;
    d2rq:propertyName owl:equivalentClass;
    d2rq:propertyValue foaf:Person;
    .

This adds an owl:equivalentClass statement with the fixed object foaf:Person to every related class definition.

9.4 Example: Providing an additional property for a property definition

map:PaperTitle a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Paper;
    d2rq:property :title;
    d2rq:column "Papers.Title";
    d2rq:additionalPropertyDefinitionProperty map:PaperTitleEquivalence;
    .
map:PaperTitleEquivalence a d2rq:AdditionalProperty;
    d2rq:propertyName owl:equivalentProperty;
    d2rq:propertyValue dc:title;
    .

This adds an owl:equivalentProperty statement with the fixed object dc:title to every related property definition.

9.5 Controlling vocabulary serving

Vocabulary serving is enabled by default. In order to deactivate it, a d2rq:Configuration block with the property d2rq:serveVocabulary set to false must be created:

map:Configuration a d2rq:Configuration;
    d2rq:serveVocabulary false.

10. Conditional Mappings

Sometimes only certain information from a database should be accessible, because parts of the database might be confidential or outdated. Using d2rq:condition you can specify conditions, which must be satisfied by all accessible data.

You can use d2rq:condition on class map and property bridge level. The d2rq:condition value is added as an additional SQL WHERE clause to all queries generated using the class map or property bridge. If the condition evaluates to FALSE for a SQL result set row, then no triples will be generated from that row.

10.1 Example: Using d2rq:condition on a d2rq:ClassMap

map:Paper a d2rq:ClassMap;
    d2rq:class :Paper;
    d2rq:uriPattern "http://www.conference.org/conf02004/paper#Paper@@Papers.PaperID@@";
    d2rq:condition "Papers.Publish = 1";
    d2rq:dataStorage map:Database1;
    .

Only those papers with a value of 1 in the Papers.Publish column will be accessible. All other papers are ignored.

10.2 Example: Filtering zero-length strings

Usually, the special value NULL is used in a database to indicate that some field has no value, or that the value is unknown. Some databases, however, are using a zero-length string ("") instead. D2RQ doesn't generate RDF statements from NULL values, but it doesn't recognize zero-length strings and will generate statements like :Person123 :firstName "". if the person's first name is a zero-length string. In oder to suppress these statements, a d2rq:condition can be added to the property bridge:

map:PersonsClassFirstName a d2rq:PropertyBridge;
    d2rq:property :firstName;
    d2rq:column "Persons.FirstName";
    d2rq:belongsToClassMap map:PersonsClassMap;
    d2rq:condition "Persons.FirstName <> ''";
    .

10.3 Example: Relationship type codes

Imagine a table Rel_Paper_Topic that associates rows from a Papers table with rows from a Topics table. The Rel_Paper_Topic table contains a PaperID column to reference the papers, a TopicID to reference the topics, and a RelationshipType column which contains 1 if the topic is a primary topic of the paper, and 2 if it is a secondary topic.

For primary topic relationships, the :primaryTopic property shall be used, and for others the :secondaryTopic property.

We can build a map for this scenario by creating two property bridges. One for :primaryTopic, one for :secondaryTopic. We add a d2rq:condition to both bridges to suppress those statements where the RelationshipType column doesn't have the correct value.

map:primaryTopic a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Paper;
    d2rq:property :primaryTopic;
    d2rq:refersToClassMap map:Topic;
    d2rq:join "Papers.PaperID <= Rel_Paper_Topic.PaperID";
    d2rq:join "Rel_Paper_Topic.TopicID => Topics.TopicID";
    d2rq:condition "Rel_Paper_Topic.RelationType = 1";
    .
map:secondaryTopic a d2rq:PropertyBridge;
    d2rq:belongsToClassMap map:Paper;
    d2rq:property :secondaryTopic;
    d2rq:refersToClassMap map:Topic;
    d2rq:join "Papers.PaperID <= Rel_Paper_Topic.PaperID";
    d2rq:join "Rel_Paper_Topic.TopicID => Topics.TopicID";
    d2rq:condition "Rel_Paper_Topic.RelationType = 2";
    .

11. Performance Optimization using Hint Properties

This section covers hint properties that can be added to property bridges in order to speed up queries: d2rq:valueMaxLength, d2rq:valueRegex and d2rq:valueContains.

You are geting the largest performance gain by providing hints for property bridges which are using d2rq:column. You should define hints on columns of large tables and on columns that are not indexed by the database. These are the cases where a well-placed optimization hint can result in an order-of-magnitude improvement for some queries. Don't bother to provide hints for property bridges based on d2rq:pattern. These can be optimized very well without hints. In general, the biggest payoff is expected for hints on large tables. If you have a few very large tables with non-indexed columns in your database, that's where you should focus your efforts.

Please keep in mind that hint properties are not intended for filtering of unwanted database values. They are only performance hints. Values that do not fulfill the criteria will still appear in query results if find patterns like (URI, ANY, ANY) are used. In oder to filter values, use d2rq:condition or a translation table with a custom Java class that returns null for unwanted database values.

11.1 Example: Providing a maximum length

map:PersonsClassFirstName a d2rq:PropertyBridge;
    d2rq:property :firstName;
    d2rq:column "Persons.FirstName";
    d2rq:belongsToClassMap map:PersonsClassMap;
    d2rq:valueMaxLength "15";
    .

The d2rq:valueMaxLength property can be used to tell D2RQ that the length of Persons.FirstName values is limited to 15 characters. Using this information, D2RQ doesn't have to look in the database anymore to figure out, that a given FirstName which is longer than 15 characters isn't fitting.

11.2 Example: Providing a regular expression

map:PaperYear a d2rq:PropertyBridge;
    d2rq:property :year;
    d2rq:column "Papers.Year";
    d2rq:belongsToClassMap map:Paper;
    d2rq:datatype xsd:gYear;
    d2rq:valueRegex "^[0-9]{4}$"
    .

Here, the d2rq:valueRegex property is used to provide a regular expression for the Papers.Year column. The statement asserts that all values match the regular expression (or are NULL). The expression ^[0-9]{4}$ matches every four-digit number. If you don't want to use the full regular expression machinery, you can use d2rq:valueContains to assert that all values generated by the property bridge contain a certain phrase.

12. Deprecated Language Constructs

This section lists several language constructs from older versions of the D2RQ mapping language that have been replaced by better alternatives and should no longer be used.

12.1 d2rq:DatatypePropertyBridge and d2rq:ObjectPropertyBridge

Older versions of the language used two different classes to distinguish between property bridges that produce literals, and bridges that produce resources.

In the current version, both cases are handled by the d2rq:PropertyBridge class. The distinction is made by using an appropriate property on the bridge declaration: d2rq:column and d2rq:pattern for literals, d2rq:uriColumn, d2rq:uriPattern and d2rq:bNodeIdColumns for resources.

12.2 d2rq:additionalProperty

Up until D2RQ 0.5.1, the d2rq:AdditionalProperty construct could be used to add a constant property-value pairs to all instances of a class map. An example is shown below:

map:PersonsClassMap a d2rq:ClassMap;
    d2rq:class :Person;
    d2rq:additionalProperty map:SeeAlsoStatement.

map:SeeAlsoStatement a d2rq:AdditionalProperty;
    d2rq:propertyName rdfs:seeAlso;
    d2rq:propertyValue <http://annotation.semanticweb.org/iswc2003/>.

This adds an rdfs:seeAlso statement with a fixed URL object to every instance of the persons class map. In recent versions of the mapping language, the same is achieved by adding a property bridge to the class map, and giving it a d2rq:constantValue property with the fixed URL as the object, as shown in this example.

d2rq:AdditionalProperty constructs are still used with d2rq:additionalClassDefinitionProperty and d2rq:additionalPropertyDefinitionProperty.

12.3 d2rq:classMap and d2rq:propertyBridge properties

d2rq:classMap Specifies that a d2rq:ClassMap is used to create instances of a given OWL or RDFS class. Use its inverse, d2rq:class, instead.
d2rq:propertyBridge Specifies that a d2rq:PropertyBridge is used to create triples with a given RDF property in the predicate position. Use its inverse, d2rq:property, instead.

12.4 d2rq:odbcDSN and d2rq:allowDistinct

These are deprecated properties of d2rq:Database:

d2rq:odbcDSN Up to D2RQ 0.7, the d2rq:odbcDSN property could be used on d2rq:Database to connect to ODBC data sources using Sun's ODBC-JDBC bridge. This has been deprecated since JDBC drivers are now readily available for most if not all data sources and generally work better. Users can still use ODBC data sources by downloading an ODBC-JDBC bridge from a vendor and using it like any other JDBC driver, with a d2rq:jdbcDSN such as jdbc:odbc:mydatabase.
d2rq:allowDistinct In D2RQ up to v0.8, this indicated the database's ability to handle DISTINCT correctly. Value: true or false. For example MSAccess cuts fields longer than 256 chars. The property is no longer necessary, as D2RQ now determines the correct value automatically.
